Aiming to form a smart cycle community that allows the use of bicycles “anytime”, “anywhere” and “easily”

mobile_eco_cycle_index01

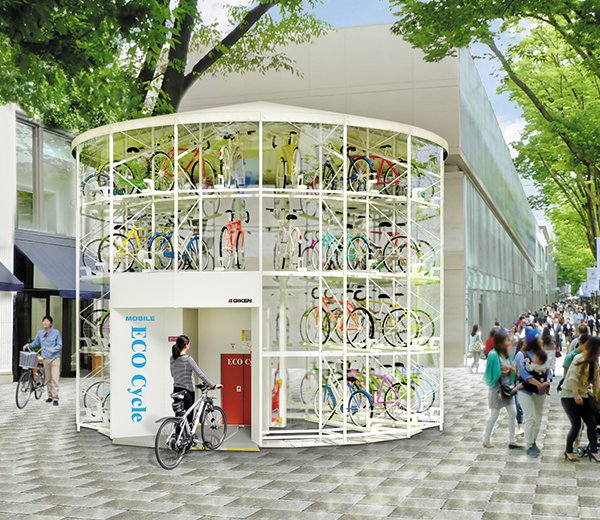

Currently, bicycles are gathering attention as a cutting-edge means of transportation in terms of ecology, CO2 reduction, clean energy, and healthy lifestyles. MOBILE ECO Cycle is an innovative movable bicycle parking system. Mobile ECO Cycle maximizes convenience and ease of use in urban areas. It can quickly be installed and removed in narrow areas.

Since our first launch of the automated underground bicycle parking system “ECO Cycle” in 1998, we have refined and advanced bicycle storage technology. We applied this experience to Mobile ECO Cycle, which is easy to operate, ecologically friendly and economically sound. By linking benefits of bicycle use with the advantages of MOBILE ECO Cycle, we enable creating a smart cycle community – a cutting-edge clean transportation culture where bicycles can be used “anytime”, “anywhere” and “easily”.

mobile_eco_cycle_index03
mobile_eco_cycle_index03

Innovative movable bicycle parking system with high storage efficiency, and fast and easy operation

1. Movable system that is easy to setup and dismantle

Because of its simple kit assembly, it can be quickly set up following basic procedures. Setup work can be completed in one to two days and removal work can be completed in one day.

1. One truck transport.
mobile_eco_cycle_features01_1
2. Base, entrance booth setup.
mobile_eco_cycle_features01_2
3. Frame parts assembly and machinery equipment setup.
mobile_eco_cycle_features01_3
4. Mounted external wall.
mobile_eco_cycle_features01_4
2. Space saving, high storage capacity

Mobile ECO Cycle can store 58 bicycles within a 6.74m diameter by 5.94m high space. Therefore, it is suited for use in confined spaces.

mobile_eco_cycle_features02_eco
3. Simple and speedy bike drop-off and retrieval

Both the drop-off and retrieval operation of Mobile ECO Cycle are very fast and easy. IC Card and IC Tag systems are used for convenience and it takes only an average of 9.7 seconds per operation.

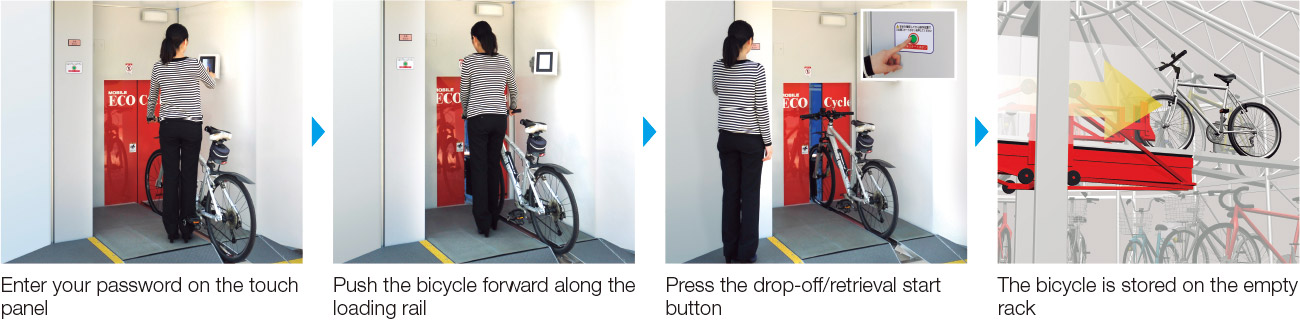

Drop-off Operations
mobile_eco_cycle_features03_1

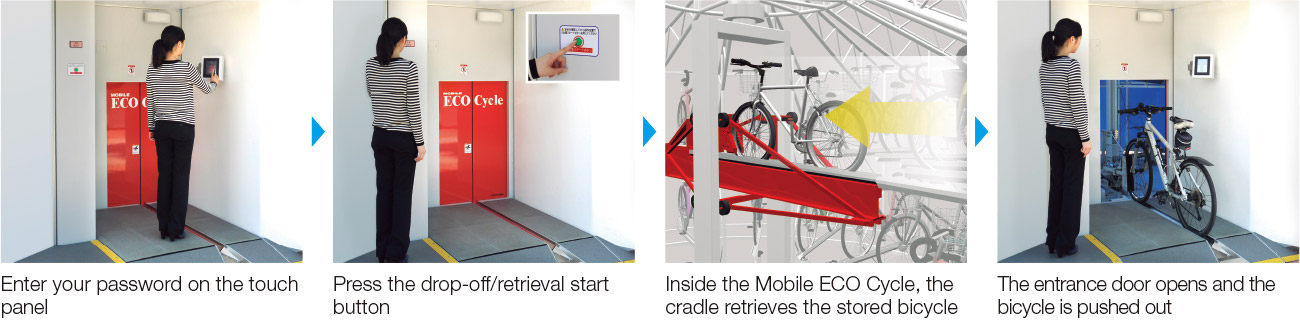

Retrieval Operations
mobile_eco_cycle_features03_2
4. Secure from rain or vandalism

Cyclists can feel assured that their property is protected from weather elements and theft.

mobile_eco_cycle_features05_eco

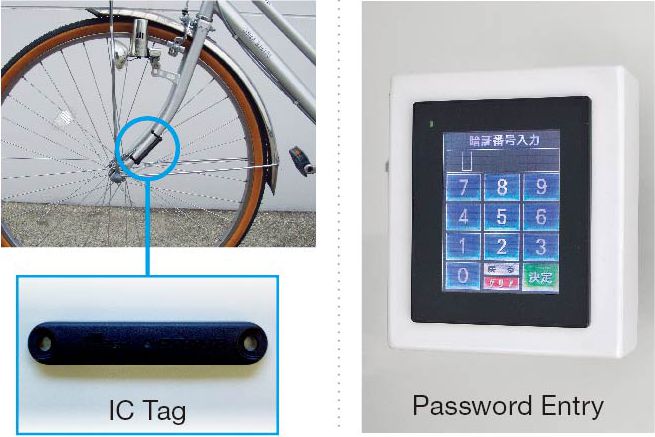

5. Flexible Registration System

With the standard specification, users are registered using IC Card and IC Tag. This makes bicycle registration, drop-off and retrieval, a simple procedure. Electric password access is an available option on request.

mobile_eco_cycle_features04_eco
6. Operational cost is low and economical

Managing staff responsibility is limited to customer registration, thanks to the fully automated Mobile ECO Cycle. Therefore, workforce can be kept to an efficient minimum. Due to this, Mobile ECO Cycle costs are much lower than traditional bicycle storage facilities.

7. Exterior walls are ideal for signage

Cyclists have a personal connection to the Mobile ECO Cycle. Users both trust and memorize the location and appearance of the facility storing their belongings. They will associate their property with any advertisement displayed on the Mobile ECO Cycle.

mobile_eco_cycle_features07

Proposed Examples

Train Stations & Bus Stops
mobile_eco_cycle_usage01

Setting up near mass transportation hubs such as train stations and bus stops to encourage bicycle use as an ingress/egress transport mode that connects travelers to their next destination. Mobile ECO Cycle’s exterior can double as advertising space.

Under Elevated Railway or Road
mobile_eco_cycle_usage12

Any practical unused urban space can conveniently be utilised by setting up Mobile ECO Cycles.

Sightseeing Spots
mobile_eco_cycle_usage03_1

Mobile ECO Cycles can form a network of cycle sharing ports that allows tourists to conveniently access local landmarks without being a distraction.

Event Venue
mobile_eco_cycle_usage02

Mobile ECO Cycle perfectly suits short-term events. Requiring only a single truck for transport, Mobile ECO Cycle can be installed within two days and dismantled within a day.

Convenience Stores and Supermarkets
mobile_eco_cycle_usage04

By promoting bicycle use, Mobile ECO Cycle directly impacts community health, economy and environment.

Street Shopping Malls
mobile_eco_cycle_usage05

Mobile ECO Cycle aids with clearing obstructing bicycles in high density areas, resulting in happy cyclists, pedestrians and store owners.

Schools
mobile_eco_cycle_usage06

Mobile ECO Cycles are perfect for schools and campuses as students and faculty are among the most prevalent cyclists in our communities.

Public Facilities
mobile_eco_cycle_usage07

Public facilities, such as city halls, libraries and museums are often not equipped with adequate parking.

Apartments & Condominiums
mobile_eco_cycle_usage08

Property value can be increased by adding MOBILE ECO Cycle, which can conveniently store trending bicycles such as electric power-assist, high-end and ride-sharing bicycles.

Factories & Laboratories
mobile_eco_cycle_usage09

Traveling short distances across company premises by car can be incredibly inefficient. Mobile ECO Cycle allows staff to remain focused on their tasks.

Construction Sites
mobile_eco_cycle_usage10

Creating extensive temporary parking zones can be very expensive and difficult logistically. Mobile ECO Cycle can be strategically deployed when space and budget are constrained.

Disaster Relief Management
mobile_eco_cycle_usage11

Distribution of food, water and basic supplies to disaster victims is greatly hindered by the disruption of existing transportation networks. Mobile ECO Cycle can provide a lifeline to both people in need and those trying to help.

Specifications
Plan
mobile_eco_cycle_spec01_eco
Cross Section
mobile_eco_cycle_spec02_eco
Specifications
mobile_eco_cycle_table_01
