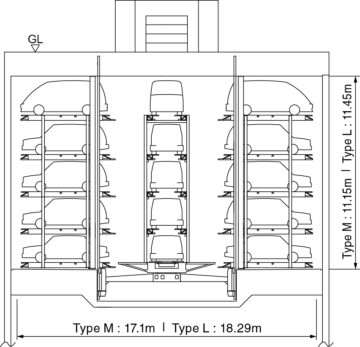

*For specification of M type, 50 vehicles｜Depends on product specifications.
Specifications
Specifications
| Mechanism | Elevator(Rotating) |
| Capacity | 50 Vehicles(Standard Spec.) |
| Operation Method | Card reader(Accepts Magnetic Strip Cards) |
| Average Vehicle Retrieval Time | 32 Sec. |
Accommodation Standard(type M)
| Total width | Max. 1900 mm |
| Total width+side mirrors | Max. 2150 mm |
| Total Height | Max. 2000 mm |
| Total Length | Max. 5000 mm |
| Weight | Max. 2200 kg |
Accommodation Standard(type L)
| Total width | Max. 2020 mm |
| Total width+side mirrors | Max. 2270 mm |
| Total Height | Max. 2300 mm |
| Total Length | Max. 5400 mm |
| Weight | Max. 2500 kg |
*Product specifications may change without notice.
Examples of vehicles
GRIN Base adopts various technologies to accommodate most of the passenger vehicles on the market. It also can accommodate a wide variety of vehicles including vans, wagons, and SUVs that are becoming popular in recent years.
Sedans/Couples
Vans
SUVs
sports car
Construction method
Press-in Method realises high-precision, environmentally friendly construction
The automated parking facility GRIN Base™ is constructed by our proprietary technology Press-in Method.
The simple construction process enabled by the Press-in Method allows for completion of one unit in as short as six months. Integrated, compact machinery allows for construction in tight quarters, limiting impact on the surrounding environment and transportation networks and maximising cost-efficiency. Construction using SILENT PILER™ of GIKEN will minimise noise and vibration compared to conventional methods. This will allow construction to be done without disturbing the environment.
Functional Structure™ for easy relocation and reuse
"The right function for the right time."
GRIN Base™ is designed to be a "Functional Structure". Taking into consideration that bicycle parks may become unnecessary, it allows simple deconstruction and removal, leaving the environment in its original state. The materials removed can also be reused, contributing greatly to a sustainable society.
Certified under Japan's new Minister standards
The ECO Park is certified under Japan's new Minister standards.
*”ECO Park” is a registered trademark of GIKEN LTD. in Japan.
