Standard Operations

Standard Machine Layout

Silent Piler is very small and light weighted and can self-move on top of piles. For sheet piling work, it requires just one service crane for pitch sheet piles.

*The machine and its deployment will differ depending on the on-site conditions.

standard_op01
Press-in Working Procedure / Self-moveing

The Silent Piler self-moves during each pile installation, moving  1 pile forward and repeating until completion.

Note: Silent Piler can also extract piles by reverse sequence.

Initial Piling

At the very beginning of press-in work, if there is no completed pile, “Reaction Stand” is usually used for initial piling work.

standard_op04

Set Silent Piler and Reaction Stand on level ground

standard_op05

Set counter weights

standard_op06

Pitch first pile and start pressing in

standard_op07

Install prescribed number of piles

standard_op08

Remove counter weights

standard_op09

Remove Reaction Stand and initial piling is completed

Curve and Corner Installation

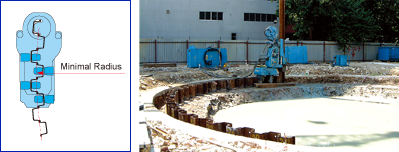

Curve Installation

Chuck rotation, mast revolution and clamp right-left mechanisms are equipped on the press-in machine main body. These functions enable to install piles on curved or complicated alignments. The minimal piling radius differs from the pile sections and press-in machine models.

standard_op10
Corner Installation

The Silent Piler is able to install piles to form corners at any angle needed by swinging its upper components of the machine body. Therefore, even the installation of pile lines with complicated pile orientation can be achieved with the Silent Piler.

standard_op11
Reverse-Moving Process

If the completion point of the piling works is  too far for the service crane to lift the Silent Piler, it can self-reverse by moving on top of the previously installed piles.

bsp0
bsp1

Mounting of Self-moving Attachment to Chuck

bsp2

Releasing of Clamps and raising machine body

bsp3

Moving of machine body rearward

bsp4

Lowering of machine body and gripping reaction piles

bsp5

Releasing  of Self-moving Attachment and raising Chuck

bsp6

Moving of machine body rearward

bsp7

Gripping of pile by Self-moving Attachment
Repeat ②-⑦ until completion

Note: Forward-Walking is also possible by reverse sequence.
